SL500DC/SL800DC Sliding Gate Automation Kit is suitable for powering the opening and closing motion of gates up to 500, 800kg in weight, up to a length of 12m.
Integrated structure of motor and battery makes installation more convenient.
Soft start & slow stop,smooth running.
Speed is adjustable.Indicator lights feeding back the error information timely Anti-pinch function when hitting the obstacles .
Auto-close function is adjustable.
Works with infrared sensor,WlFl control

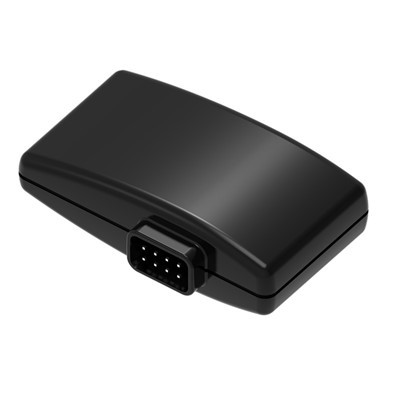

WIFl Function.(Optional)
Technical Parameters
|
Model |
SL500DC |
SL800DC |
|
Power supply |
220V/50Hz;110V/60Hz |
220V/50Hz;110V/60Hz |
|
Motor power |
150W |
170W |
|
Gate moving speed |
16-18m/min |
16-18m/min |
|
Maximum loading weight |
500Kg |
800Kg |
|
Remote control distance |
≥30m |
≥30m |
|
Remote control mode |
Single button mode/Three button mode |
Single button mode/Three button mode |
|
Limit switch |
Electronic limit switch |
Electronic limit switch |
|
Noise |
≤60dB |
≤60dB |
|
Working duty |
S2, 20min |
S2, 20min |
|
Recording of up remote controls |
100 |
100 |
|
Frequency |
433.92 MHz |
433.92 MHz |
|
Working temperature |
-20°C ~ +70°C |
-20°C ~ +70°C |
|
Package weight |
10Kg |
11Kg |
|
Battery specification |
12V/9Ah |
12V/9Ah |
