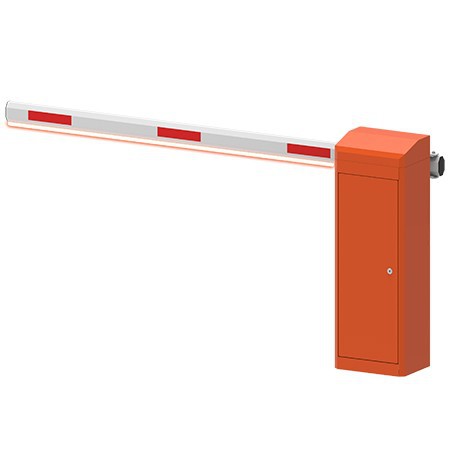

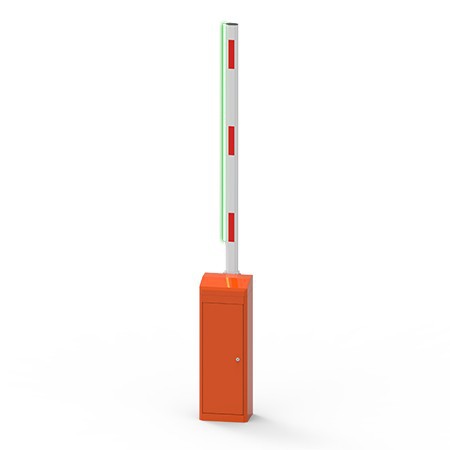

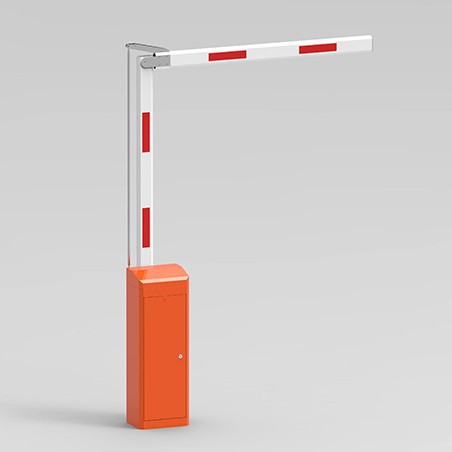

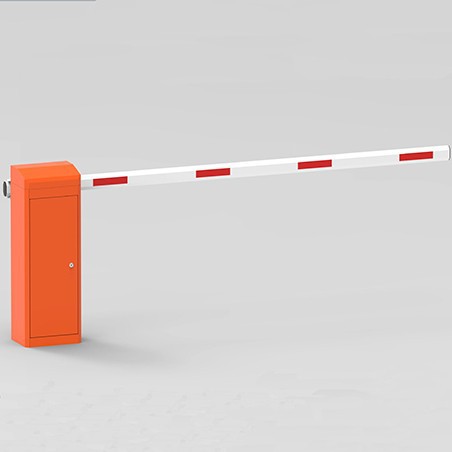

Automation Barrier Gate DC Brushless

Automation Barrier Gate DC Brushless
Details:
Barrier Gate, also known as a vehicle barrier or arm barrier, is a dedicated access control device designed for managing vehicle entry and exit. Its core component is an electric barrier arm, which controls vehicle passage and restriction through precise lifting and lowering operations. Modern barrier gates have evolved into integrated system execution terminals that combine intelligent control, precision management, and safety protection. Deeply integrated into smart parking lots, access control systems, and toll collection systems, they work in conjunction with license plate recognition (LPR) systems, ground loop detectors, and payment systems to deliver multiple intelligent functions, including automatic identification and release, unmanned toll collection, classified vehicle management, and anti-crushing protection. Such high integration makes them an indispensable infrastructure in modern smart transportation and urban management, which not only improves traffic efficiency but also ensures operational safety.
Send Inquiry
Description

BC BLDC Barrier Gate

  • 24V brushless DC motor combined with precision mechanical structure and an intelligent control algorithm.
  • Precision four-bar linkage transmission mechanism ensures smooth arm movement with soft start and gradual stop, free of impact.
  • Integrated compact movement design features a simplified structure, supports wall-mounted installation and enables convenient maintenance.
  • Intelligent speed control allows stepless speed adjustment from 1.5s to 6s.
  • High-sensitivity obstacle-detection rebound.
  • Opening signal priority response mechanism.
  • Ultra-low power consumption operation.
  • Multiple safety protection functions, guarantees stable and reliable system operation.

Hot Tags: automation barrier gate dc brushless, China automation barrier gate dc brushless manufacturers, suppliers, factory, bldc barrier gate, side door motor

Products Description

Model
BC3015
BC4020
BC5035
BC6050
products
LED 1
LED 1
LED 1
LED 1
Power Supply AC110-240V
Maximum Power Consumption 140W
Open/Close Time 1.5 sec. 2.0 sec. 3.5 sec. 5.0 sec.
Driving Method DC Brushless Motor + Helical Gear Reducer
Service Life 5 million times
Protection Class IP54
Rated Speed 3000rpm
Machine Case Thickness/Surface Treatment 1.5mm steel plate/outdoor electrostatic powder spraying
Noise 50dB
Working Temperature -40°C ~ +80°C
Package Size 330x240x960mm
Package Weight 42KG
