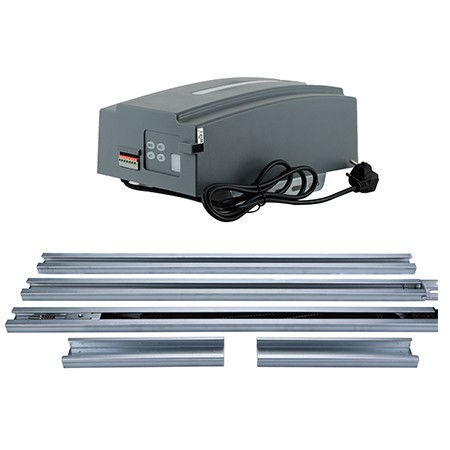

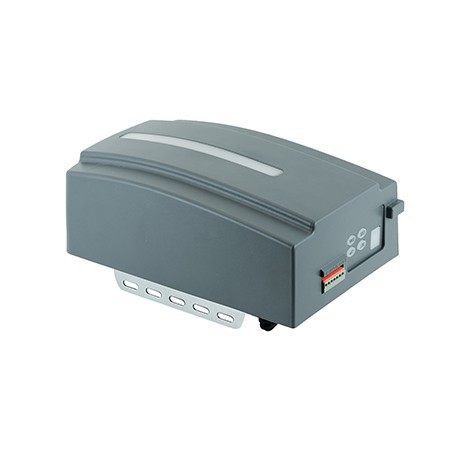

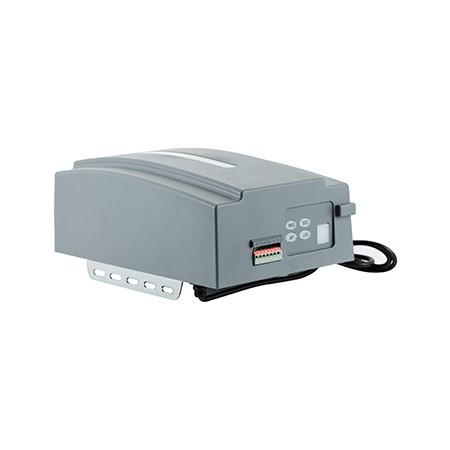

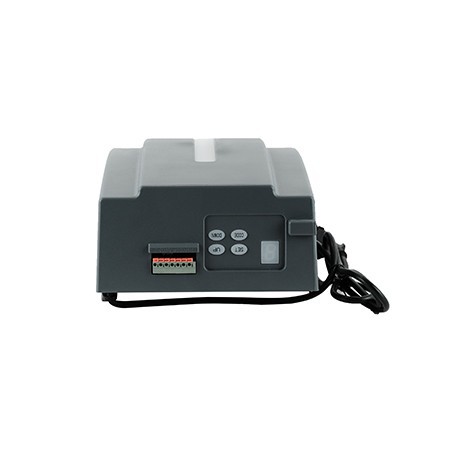

Automatic WIFI Garage Door Opener

Automatic WIFI Garage Door Opener
Details:
A garage door operator is a motor-driven system that powers the automatic opening and closing of vertically-lifting or sectional garage doors. It serves as a critical device for smart home applications and vehicle entry/exit management.
Send Inquiry
Description

PD1000 Garage Door Opener

  • Ceiling-mounted garage door opener, moves gates up to 150kg.
  • Available in AC mains power 110V/220V and DC 24V.
  • Easy to program and set up.
  • Support WIFI control.
  • Backup battery support, allows for completing certain operations even when there is no mains power.
  • Support for various safety accessoires.
  • Automatic reverse after meeting obstructions.
  • Soft start-slow stop and Auto-close function.

Hot Tags: automatic wifi garage door opener, China automatic wifi garage door opener manufacturers, suppliers, factory, parking lot automatic barrier gate, garage door motor, nice gate opener installation, the garage door

Products Description




basic Parameters
Model
PD1000
products
DSCF6101
Power Supply AC110V/60Hz; AC220V/50Hz
Output Torque 100N
Maximum Door Weight 150kg
Maximum Door Area 15m2
Maximum Door Height 2400-3500mm
Drive Mechanism Chain/Belt
Limit Switch Electronic Limit Switch
Moving Speed C Rail 160mm/sec.       T Rail 190mm/sec.
LED 24V/15pcs LED lamps
Working Temperature -40°C ~ +50°C
Remote Control Frequency 433.92MHz
Package Weight 16KG
