Description

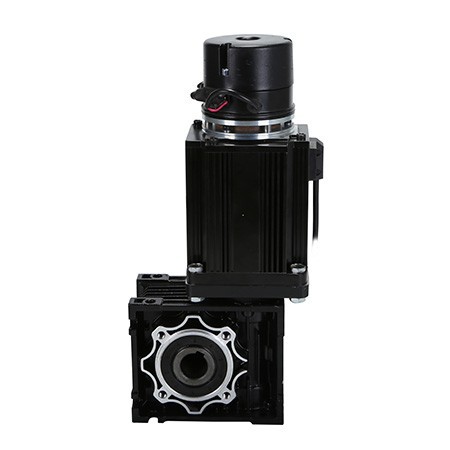

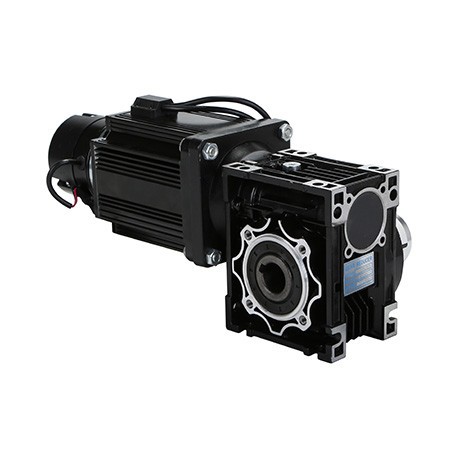

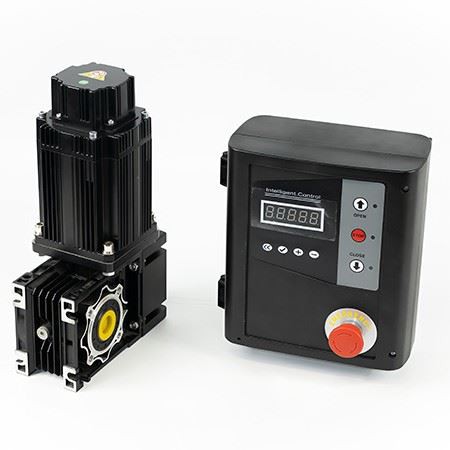

RD1500SV Rapid Door Motor (Sevo System)
- High-performance servo motor and a three-loop closed-loop control system, combined with a fully digital human-machine interaction interface.
- Equipped with a mechanical clutch device, disengaged the motor via a 360°universal hand chain, allowing manually open/close in case of power outage.
- Supports various of industrial security and automation devices such as push-buttons, warning lights, infrared sensors, safety airbags and grounding loops.
- LCD display, combined with a parameter menu covering 6 major categories and 50 sub-items, allows users to perform in-depth personalized settings for running speed, torque, and time etc.
- User friendly, easy to program and set up, system monitors the operational status, records and alarms for various faults.
- One-Click direction reversal function for changing the door's running direction.
Hot Tags: automatic rapid speed door motor servo system, China automatic rapid speed door motor servo system manufacturers, suppliers, factory, servo system version, high speed door opener, Rolling Industrial Door Opener
Basic Parameter of Rapid Door Motor
| Model |
RD1500SV
|
| products |
 |
| Power Supply | AC220V/50Hz |
| Maximum Loading Door Area | 25m2 |
| Motor Power | 1700W |
| Absolute Encoder | 256 Cycles |
| Rated Speed | 2800rpm |
| Moving Speed | 2m/s |
| Frequency Adjustable Range | 0-100Hz |
| Release Mode | Crank Handle |
| Work Duty | S3 40% |
| Noise | ≤60dB |
| Working Temperature | -20°C ~ +45°C |
| Package Weight | 15KG |
