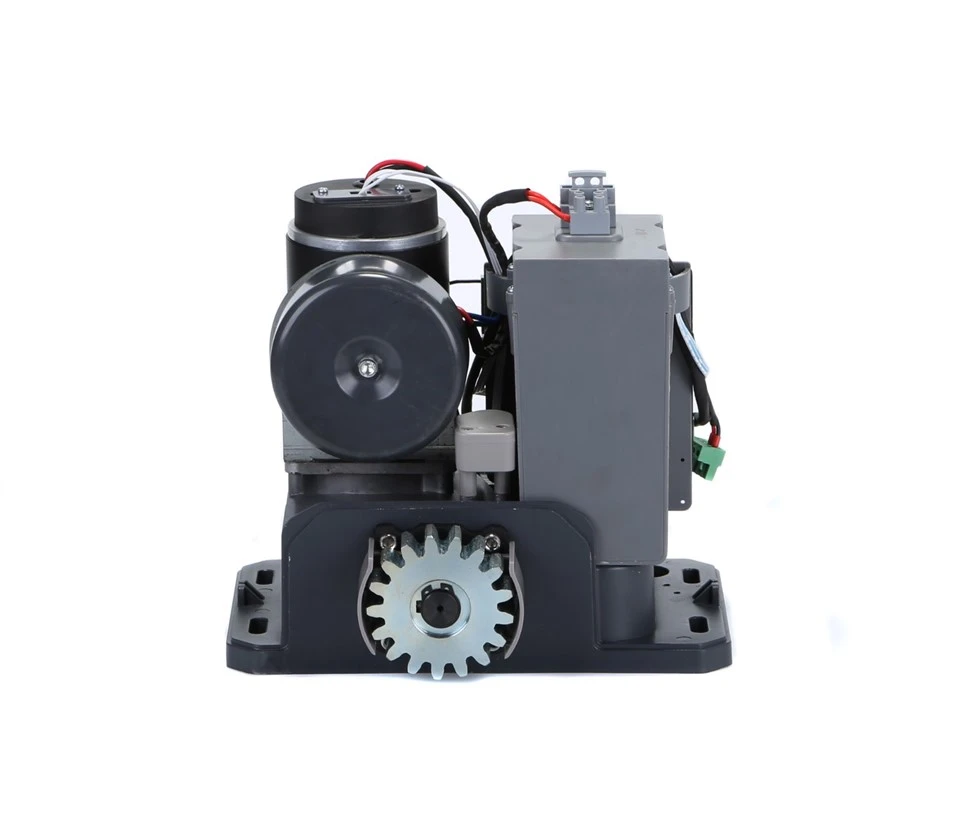

· SL500DC/SL800DC Sliding Gate Automation Kit is suitable for powering the opening and
closing motion of gates up to 500, 800kg in weight, up to a length of 12m.
· Gate motion is achieved by the rotating output gear of the gate opener driving the gear rack (sold separately) fitted to the moving gate.
· The gate opener requires you to press the remote control once to open, and once again to
close. This is a safety feature to ensure safe operation.
· The opener must be fitted within private property, never externally to a property's boundary.
Hot Tags: Automatic Door Operators SL500DC SL800DC Manufacturers Automatic Door Openers Suppliers Wholesale Automatic Buy Automatic Door Openers Door Operators, China Automatic Door Operators SL500DC SL800DC Manufacturers Automatic Door Openers Suppliers Wholesale Automatic Buy Automatic Door Openers Door Operators manufacturers, suppliers, factory, electric gate mechanism
|
Model |
SL500DC |
SL800DC |
|
Power Supply |
110VAC/60Hz; 220VAC/50Hz |
|
|
Motor Power |
150W |
170W |
|
Gate Moving Speed |
16-18m/min |
|
|
Maximum Loading Weight |
500KG |
800KG |
|
Remote Control Distance |
≥ 30m |
|
|
Remote Control Mode |
Single button mode / Three button mode |
|
|
Limit Switch |
Magnetic limit switch |
|
|
Working Noise |
≤ 60dB |
|
|
Working Duty |
S2, 20min |
|
|
Recording of up Remote Controls |
32 |
|
|
Remote Frequency |
433.92 MHz |
|
|
Working Temperature |
-20°C - +70°C |
|
|
Package Weight |
10KG |
11KG |
|
Battery Specification |
12V/9Ah×1pc |
|
