Description

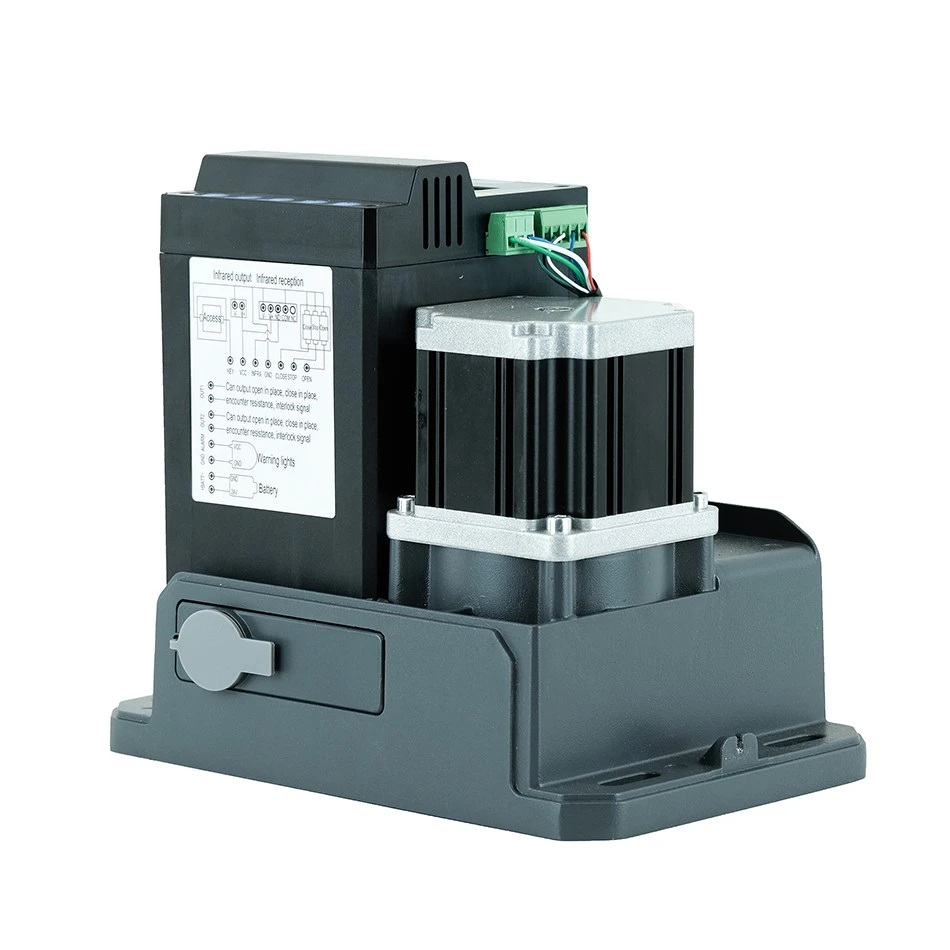

SL500DCW Sliding Gate Opener Kit
- Continuous duty 24V BLDC slide gate opener, moves gates up to 500kg and 12 meters wide.
- Electromechanical integration, UV stabilized enclosure, compact and exquisite.
- Internal 24V/2.5Ah battery allows for completing certain operations even when there is no mains power.
- Adjustable opening and closing speed.
- Wi-Fi support, with an app, every motion is under control.
- Security and safety, supports various of safety sensors, flashing lights.
- Safety reversing after detecting obstructions.
- Featured with soft start-slow close function and automatic close function.
- Equipped with a mechanical clutch device, allowing manually open/close in case of power outage.
Hot Tags: bldc sliding gate dc brushless motor 500kg, China bldc sliding gate dc brushless motor 500kg manufacturers, suppliers, factory, electric gate mechanism
|
Model |
SL500DCW |
|
Power supply |
AC220V/50Hz; AC110V/60Hz |
|
Motor Power |
140W |
|
Gate Moving Speed |
21-22m/min |
|
Maximum Loading Weight |
500KG |
|
Remote Control Distance |
≥30m |
|
Remote Control Mode |
Single button mode / Three button mode |
|
Limit Switch |
Magnetic limit switch / Spring limit switch |
|
Working Noise |
≤56dB |
|
Working Duty |
S1 |
|
Recording of up Remote Controls |
200 |
|
Remote Frequency |
433.92 MHz |
|
Working Temperature |
-20°C - +70°C |
|
Package Weight |
10KG |
|
Battery Specification |
Lithium 24V/2.5Ah*1pc |
