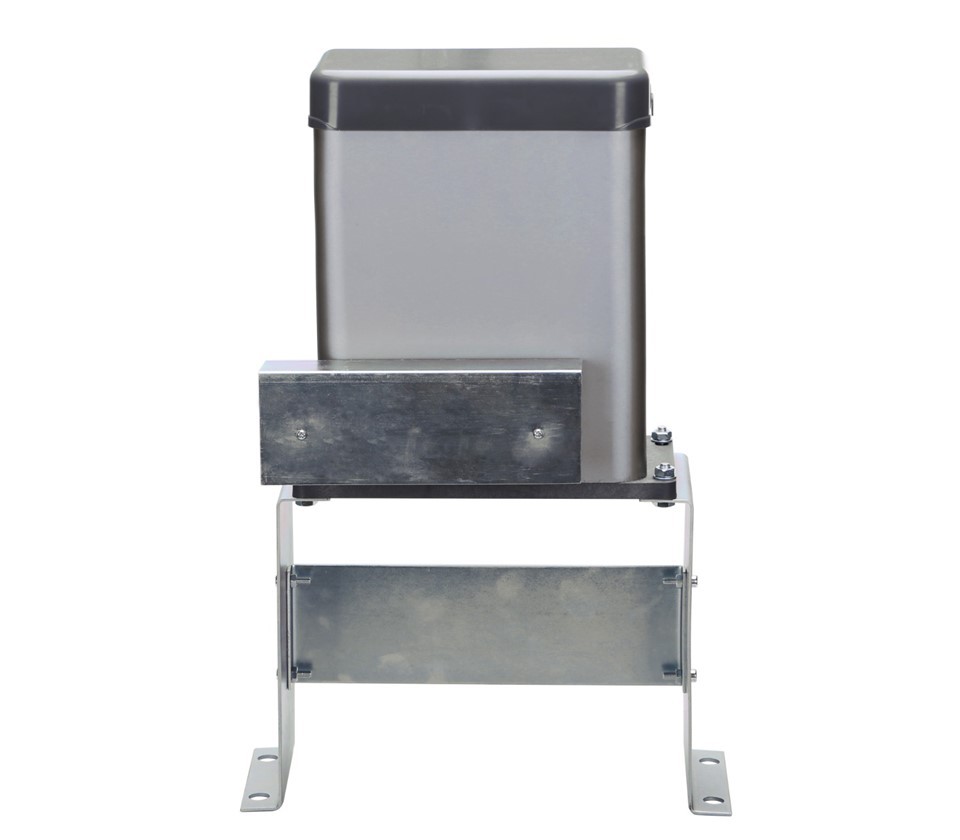

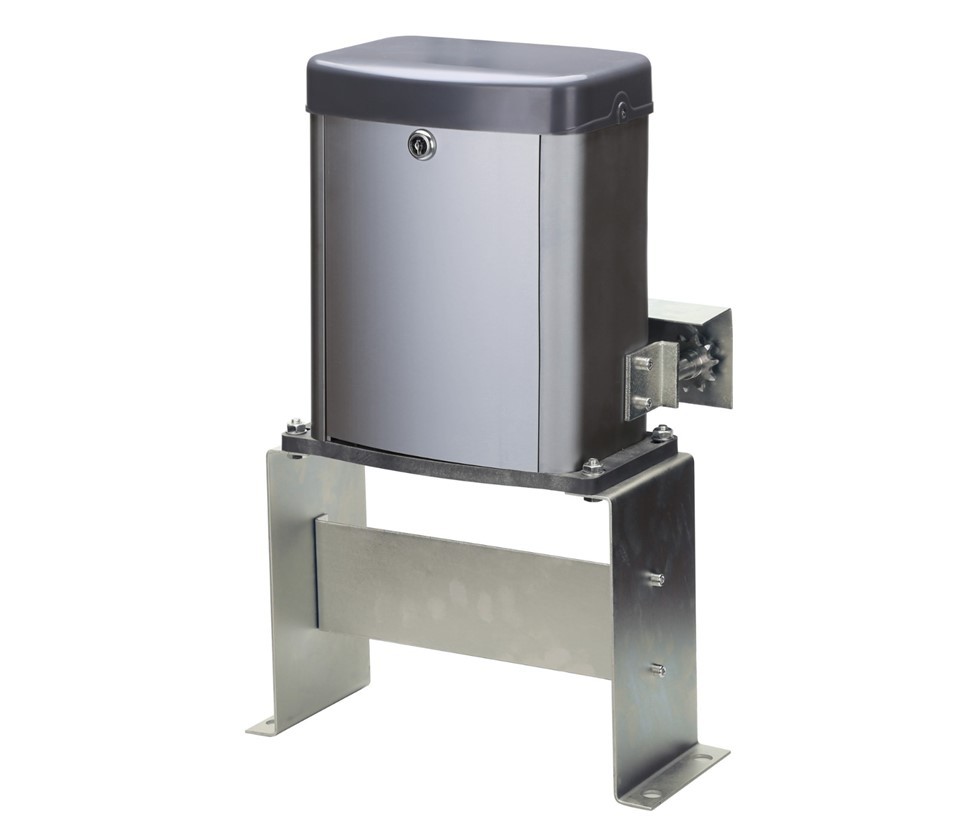

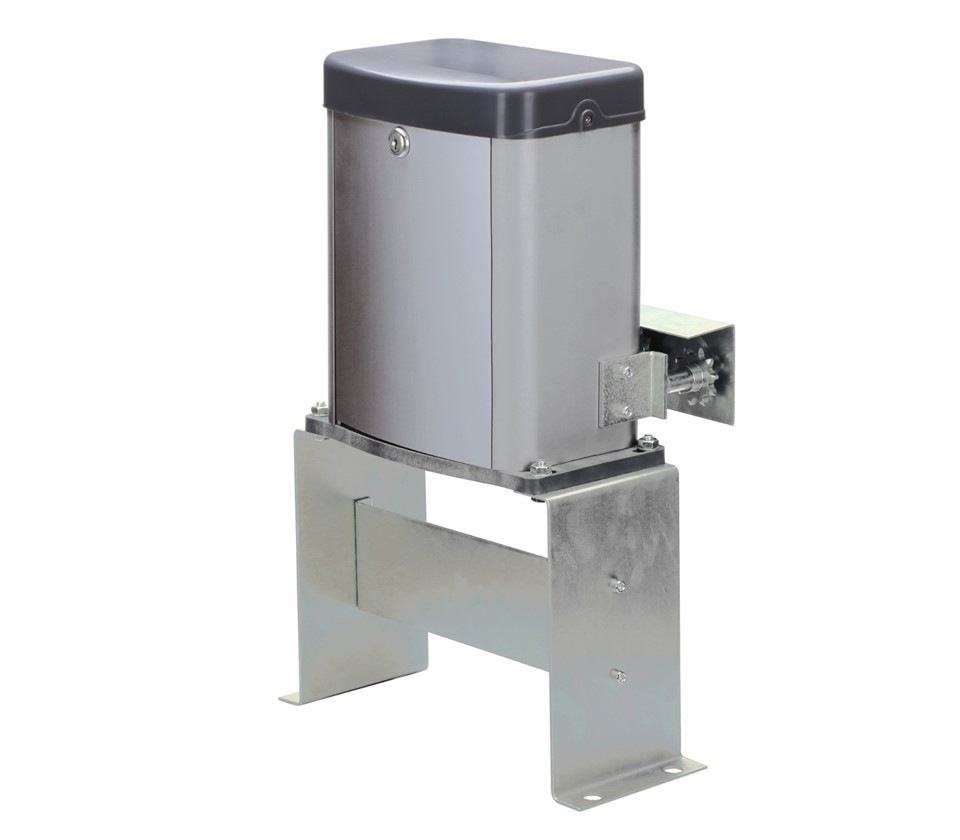

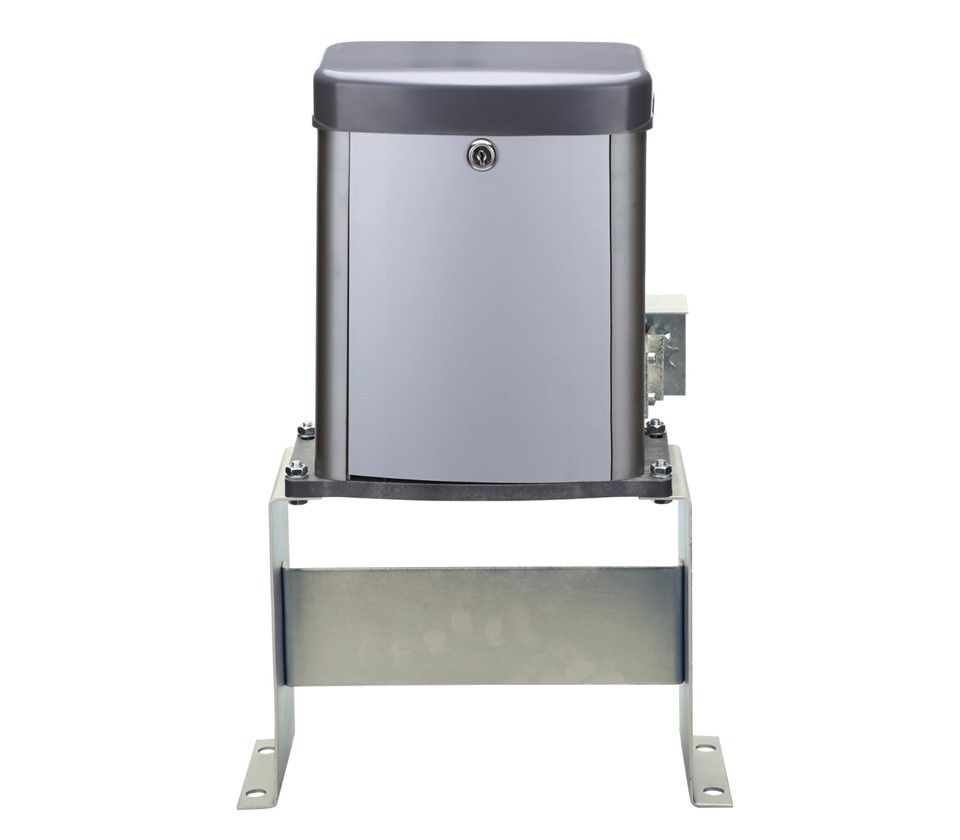

· PY300DCL Sliding Gate Automation Kit is suitable for powering the opening and closing motion of gates up to 300kg in weight, up to a length of 12m. (Standard kit contains a 6m chain, if the gate length is over 5.5m, please consider to extend the length of the chain.)
· Gate motion is achieved by the rotating output sprocket of the gate opener driving the chain fitted to the moving gate.
· The gate opener requires you to press the remote control once to open, and once again to close. This is a safety feature to ensure safe operation.
· The gate opener itself must be fitted within private property, never externally to a property's boundary.
Parts List

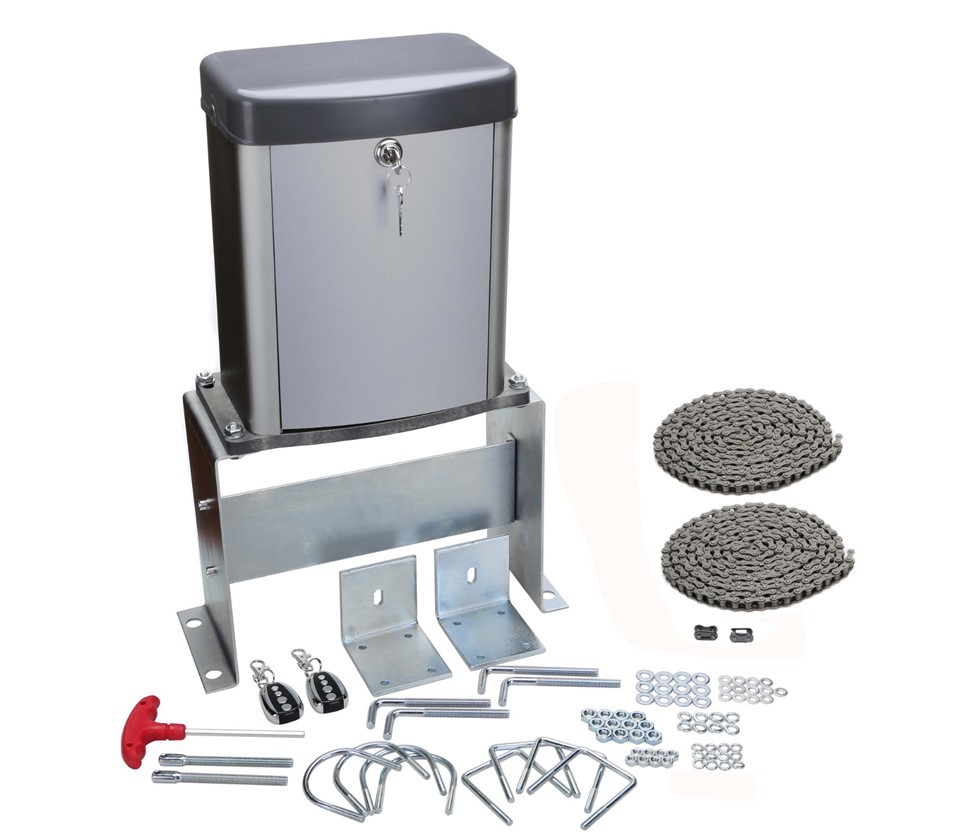

Parts List (standard configuration)
|
No. |
Picture |
Name |
Quantity |
|
1 |
|
Motor |
1 |
|
2 |
|
Manual Release Keys |
2 |
|
3 |
|
Manual Release Bar |
1 |
|
4 |
|
Remote Controls |
2 |
|
5 |
|
Mounting Accessories Box |
1 |
|
5-1 |
|
Sprocket Cover |
1 |
|
5-2 |
|
Chain(Including 2 Chain Links) |
6m |
|
5-3 |
|
Tie Rod |
2 |
|
5-4 |
|
Square Screw |
4 |
|
5-5 |
|
Round Screw |
4 |
|
5-6 |
|
Door Connecting Plate |
2 |
|
5-7 |
|
Horizontal Mounting Plate |
1 |
|
5-8 |
|
Vertical Mounting Plate |
2 |
|
5-9 |
|
Anchor Bolts M8 |
4 |
|
5-10 |
|
Inner Hexagon Head Bolt M6X20 |
4 |
|
5-11 |
|
Hexagon Head Bolt M8X40 |
4 |
|
5-12 |
|
Nut M6 |
12 |
|
Nut M8 |
16 |
||
|
5-13 |
|
Flat Washer φ6 |
12 |
|
Flat Washer φ8 |
16 |
||
|
5-14 |
|
Spring Washers φ6 |
12 |
|
Spring Washers φ8 |
12 |
Note: Extra flat washers and spring washers are spare parts.
Parts List (optional)
|
No. |
Picture |
Name |
Quantity |
|
1 |
|
Infrared Photocell |
1 |
|
2 |
|
Wireless Keypad |
1 |
|
3 |
|
Alarm Lamp |
1 |
Additional remote controls: Spare/Additional remotes for the automatic gate kit, these will need to be paired to the motor.
Infrared photocell: Detects pedestrians, vehicles and objects that cross an infrared beam and prevents the gate from closing.
Wireless keypad: Allows secure access through the gate used with a user set code.
Wired control: Allow users to control the opening and closing of the door through an external push-button.
Alarm lamp: Alerts people near the gate and users that the gate is in operation.
Hot Tags: joytech dc solar backup battery sliding gate opener py300dcl chain drive manufacturer made in china ce rosh, China joytech dc solar backup battery sliding gate opener py300dcl chain drive manufacturer made in china ce rosh manufacturers, suppliers, factory, automatic closing high speed door opener, pvc high speed door opener, remote control swing gate opener, sliding gate opener, soft start swing gate opener, wifi swing gate opener
Technical Parameters
|
Model |
PY300DCL |
|
Power Supply |
110VAC/60Hz |
|
Motor Power |
100W |
|
Gate Moving Speed |
13m/min |
|
Maximum Loading Weight |
300KG |
|
Remote Control Distance |
≥30m |
|
Remote Control Mode |
Single button mode |
|
Limit Switch |
Electronic limit switch |
|
Working Noise |
≤60dB |
|
Working Duty |
S2, 20min |
|
Recording of up Remote Controls |
20 |
|
Remote Frequency |
433.92 MHz |
|
Working Temperature |
-20°C - +70°C |
|
Battery Specification |
12V 4.5Ah*2pcs |
|
Package Weight |
18.94KG |
